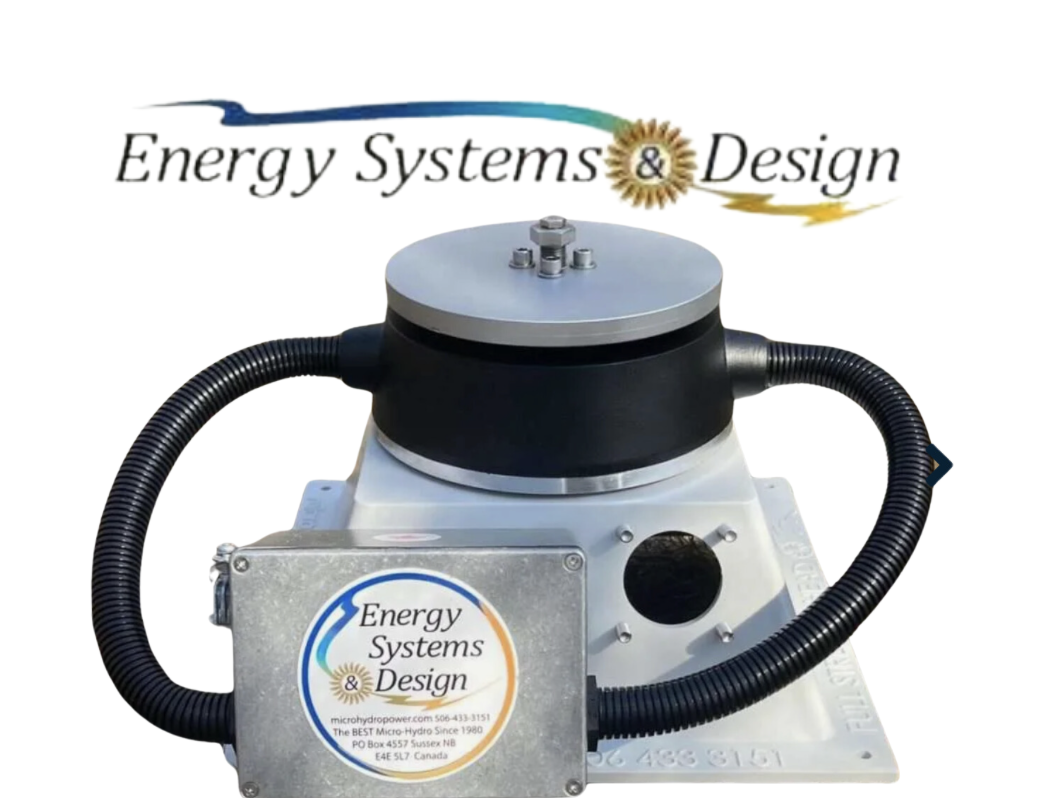

Stream Engine
Energy Systems & Design, Ltd
Solution Overview & Benefits
The Stream Engine employs a brushless, permanent magnet alternator which is adjustable, enabling the user to match turbine output to the electrical load. It has higher efficiency than previous alternators, and is capable of outputs over 1 kilowatt (kW). It is equipped with a rugged bronze turgo wheel, universal nozzles (adaptable to sizing from 3 mm (1/8 inch) to 25 mm (1 inch), and a digital multimeter which is used to measure output current. The entire system is made of non-corrosive alloys for long life and durability. This machine can produce power from heads as low as 2 metres (6 feet) to over 100 metres ( 300 feet).
Features:
- A rugged stainless steel turbine wheel available in a turbo style for high flow and a high head wheel for higher heads.
- Adjustable output Permanent Magnet Alternator, with Epoxy Encapsulated Stator
- Non-Corrosive Precision Made Parts.
- Operates with heads of 2 metres minimum
- Explanatory manual and multimeter included.
- Straightforward Installation
- 1 Year Warranty
History & Development
Energy Systems & Design has been producing micro-hydroelectric components since 1980. Energy Systems & Design makes alternative energy equipment that converts energy from moving water into electricity and offers a wide array of products and services to the renewable energy (RE) marketplace and international installation services.
Availability
- Publicly available: yes
- Countries where available: Worldwide
- Countries where spare parts can be purchased: Contact manufacturer
