S Self-install Solar Water Pump Kit
Lorentz

Solution Overview & Benefits

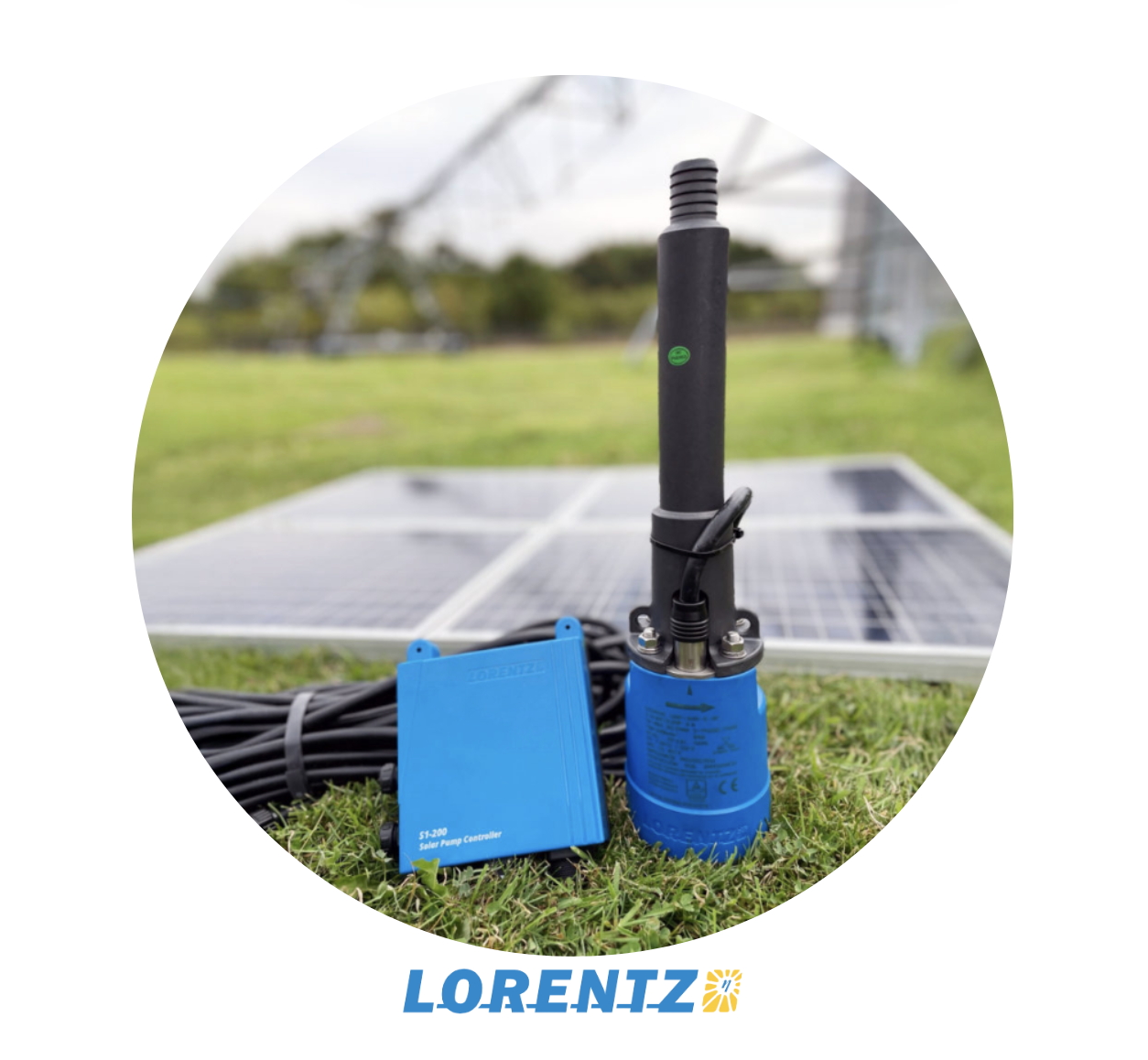

The LORENTZ S1-200 is a plug-and-play solar water pumping system engineered for simplicity and durability. With its submersible helical rotor pump and brushless DC motor, it delivers high efficiency and consistent performance. The system is designed for easy self-installation, requiring no specialized tools or technical expertise, making it accessible for a wide range of users.
Key Features and Benefits:
- Easy Self-Installation: Pre-plugged components and intuitive design allow for quick setup without specialized tools.
- High Efficiency: Brushless DC motor and helical rotor pump ensure optimal performance and longevity.
- Solar-Powered: Operates entirely on solar energy, eliminating fuel costs and reducing environmental impact.
- Portable and Lightweight: Compact design facilitates easy transport and deployment across various locations.
- Robust Construction: Built with high-quality materials to withstand harsh environmental conditions.
- Bluetooth Connectivity: Integrated with the LORENTZ S-Connect app for real-time monitoring and control.
History & Development
LORENTZ, established in 1993, has been at the forefront of solar-powered water pumping solutions. The S1-200 series was developed to address the need for accessible, efficient, and easy-to-install water pumping systems for off-grid and remote areas. By leveraging decades of experience, LORENTZ designed the S1-200 to combine high performance with user-friendly features, making solar water pumping more accessible to a broader audience.
Availability
- Available: worldwide
- Price: contact solution provider for quote
Specifications
- Maximum Head: Up to 40 meters
- Flow Rate: Up to 2,500 liters per day at 40m head; higher flow rates at lower heads
- Power Input: Operates with a single 200W solar panel
- Pump Types: Available with different pump ends (e.g., HR-07, HR-14) to suit various applications
- Controller: IP68 rated, with integrated Maximum Power Point Tracking (MPPT) and Bluetooth connectivity
- Dimensions: Pump length approximately 431.6 mm; diameter 96 mm; weight 7.2 kg
Additional Information
Package Includes
- Submersible pump with motor and 15m cable
- S1-200 controller
- 2 x 100W solar panels
- Solar panel mounting kit
- Access to LORENTZ S-Connect app
